Professional material:its appearance is made up of superior stainless steel engineering material,having the advantage of durability.
Precise structure:it uses high-tech the design of elaborate motor structure, having the advantage of stable performance, energy conservation and envizronment protection.
Easy operation:its humanizing design of operating system makes it have the advantage of learn ability and easy operation.
Quality assurance:the products have passed the ISO9001 international quality management system certification, having the advantage of high quality and prestige.
Categories: Stainless Steel Pipe Making Machine
APPLICATION
Mainly used for the production of industrial stainless steel tube, be widely used in many areas, such as:chemical engineering, medicine, winery, petroleum, food, automobile, paper-making industry, air conditioning and so on.
PRODUCTINPROCESS

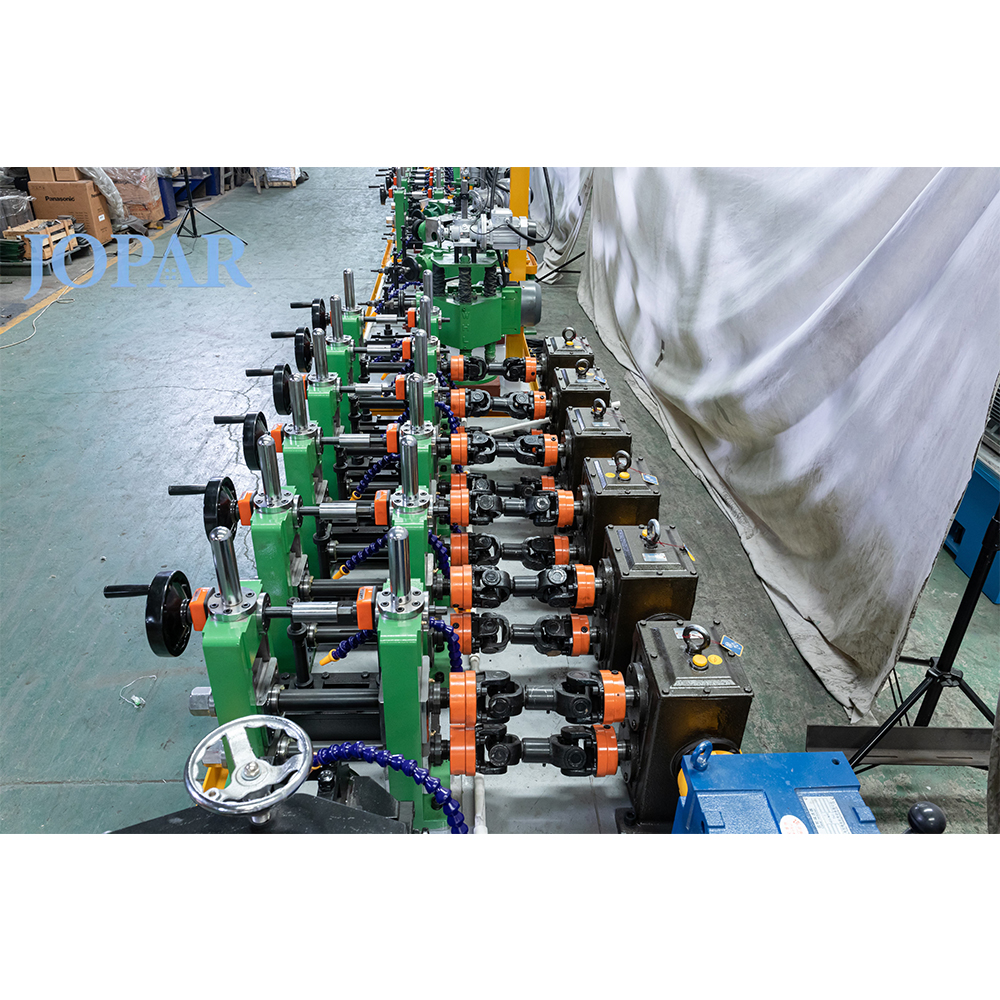

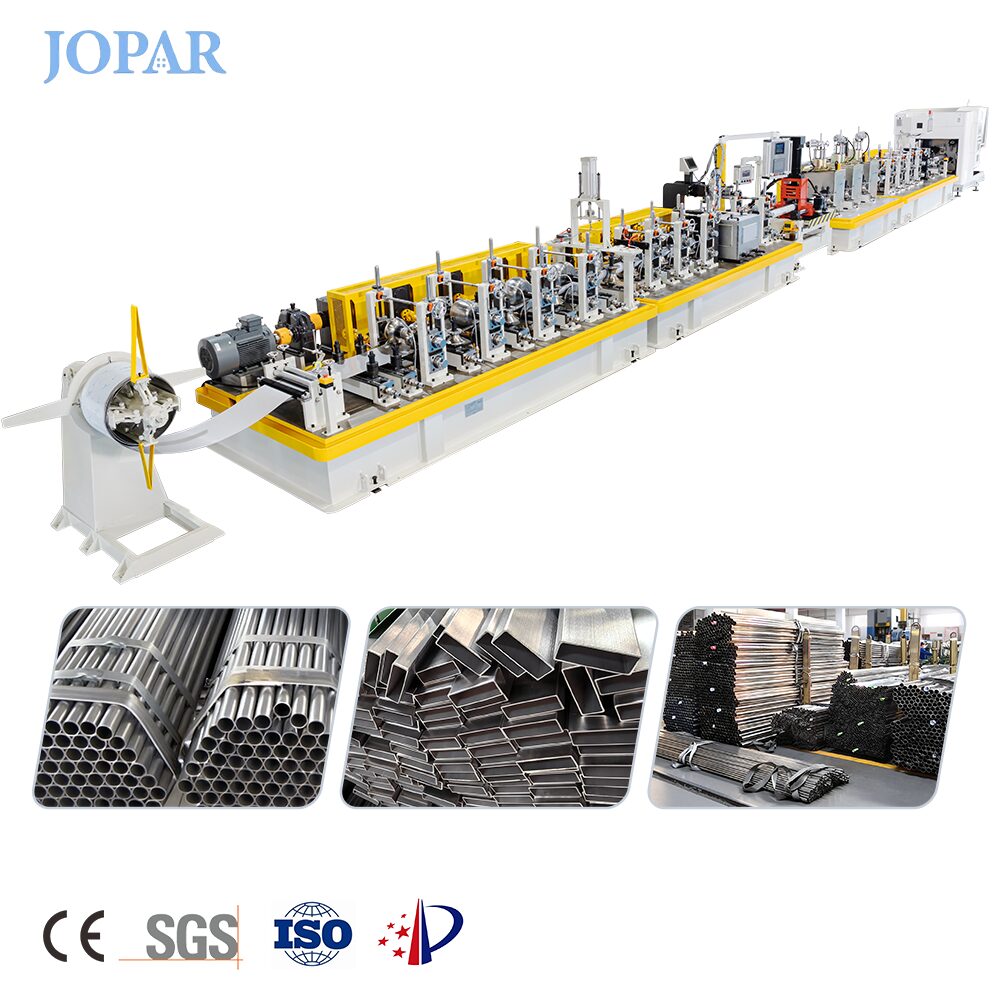

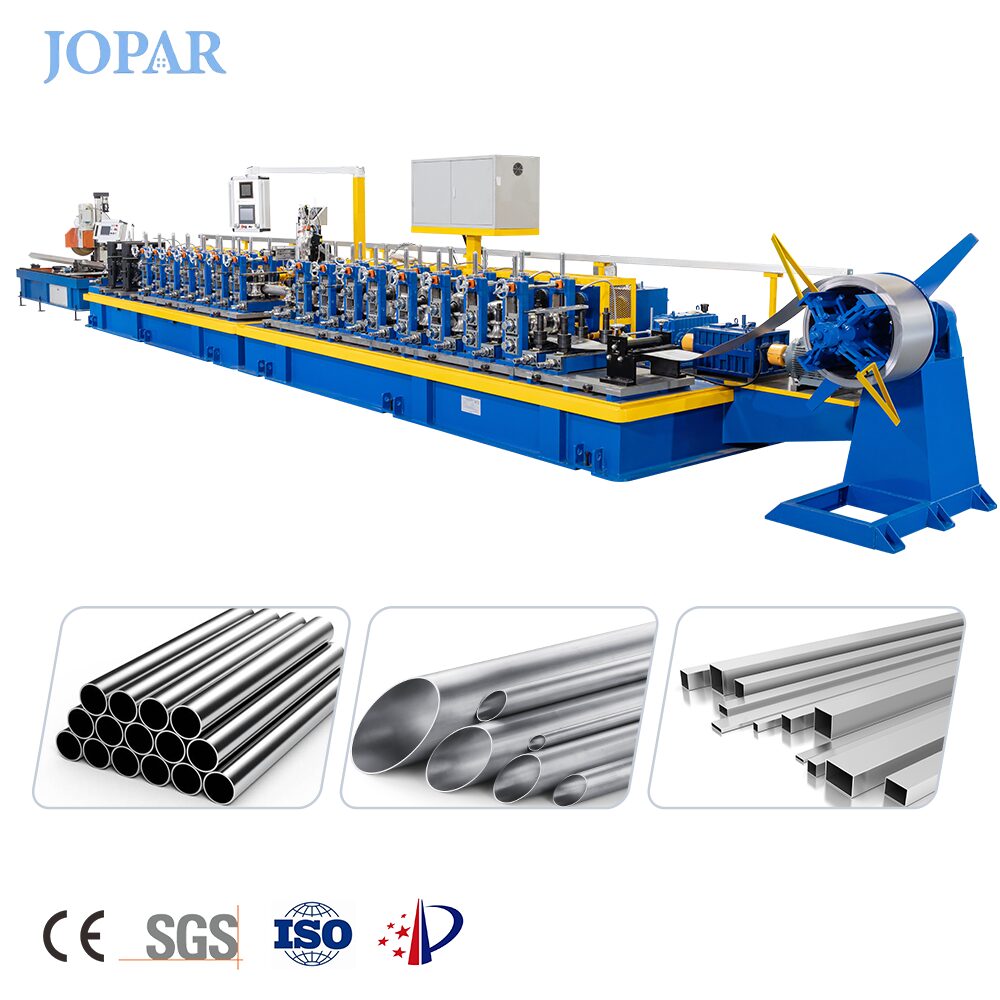

Uncoiling, guidance, molding, welding, outside welded grinding, sizing, alignment, cut off, run out
TECHNICAL PARAMETERS
Precision models | ||||||
model number |
Horizontal axis diameter |
Diameter of vertical shaft |
diameters | thicknesses | electrical machinery |
sizes |
JP-P20 | 25mm | 20mm | Φ5-12mm | 0.18-0.6mm | 4kW+4kW | 16m*1.0m |
JP-P30 | 30mm | 20mm | Φ6-19mm | 0.2-0.8mm | 5.5kW+5.5kW | 17m*1.1m |
JP-P40 | 40mm | 25mm | Φ8-51mm | 0.5-2.0mm | 7.5kW+7.5kW | 21m*1.3m |
JP-P50 | 50mm | 30mm | Φ25-76mm | 0.5-3.0mm | 11kW+11kW | 23m*1.5m |
JP-P60 | 60mm | 40mm | Φ50-114mm | 0.6-3.5mm | 15kW+15kW | 25m*1.6m |
JP-P80 | 80mm | 50mm | Φ89-168mm | 1.0-4.5mm | 18.5kW+18.5kW | 32m*2.5m |
